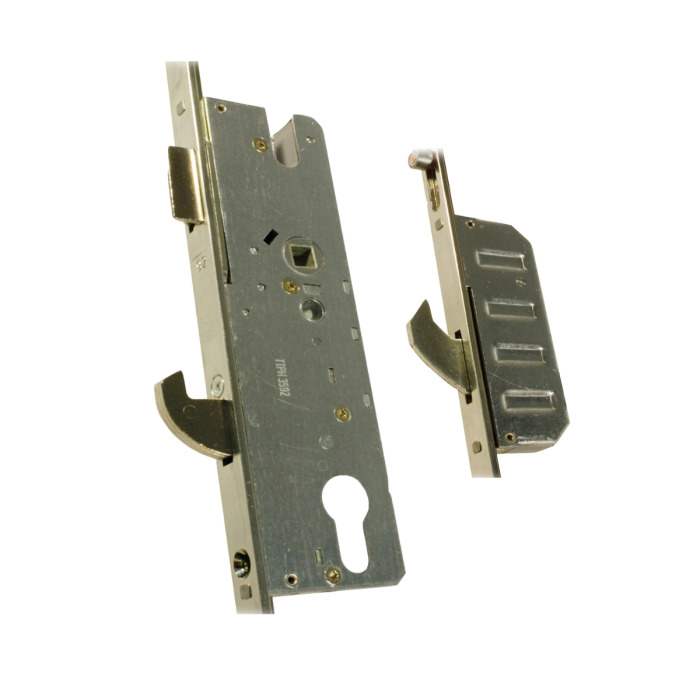

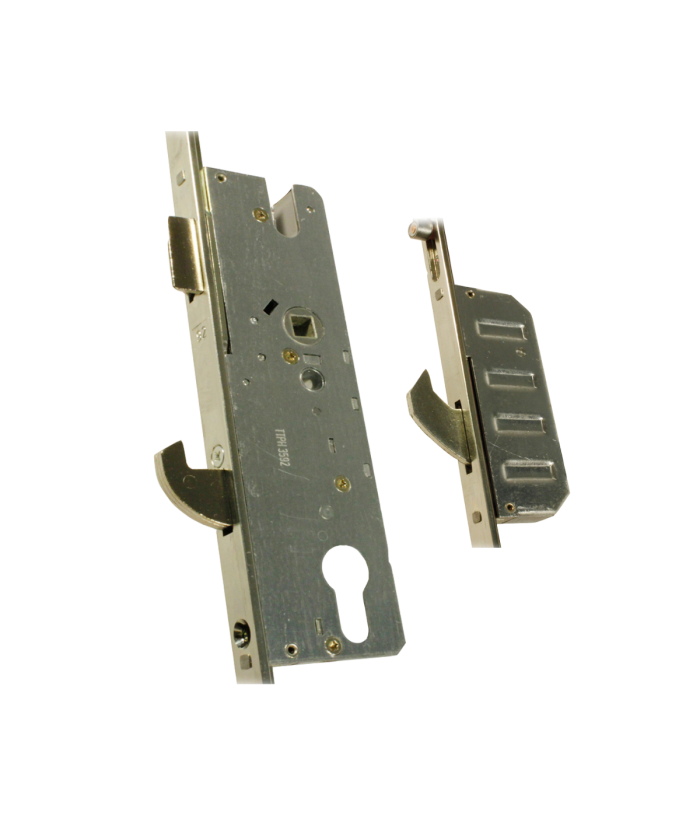

Winkhaus Scorpion 3 Hooks 2 Rollers
L/L + S/S Operation
92mm PZ Centre
16mm Faceplate Width
1 Latch, 1 Deadbolt, 3 Hooks, 2 Rollers
The Winkhaus Scorpion multipoint lock is suitable for uPVC doors and is available with a 35mm backset.
The Winkhaus Scorpion combines ease of use with high security by using the latest multipoint lock technology to ensure that the lock is both secure and easy to use.
This makes the Scorpion easy to operate and a particularly good choice for elderly or infirm users.
35mm Backset. 16mm Faceplate. 92mm PZ Centre.
Technical Specification: Centre of spindle hole to centre of top roller - 775mm. Centre of spindle hole to centre of top hook - 685mm. Centre of spindle hole to centre of bottom roller - 795mm. Centre of spindle hole to centre of bottom hook - 705mm.
L/L: Lever Operated.
To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.
To Open From Inside - Turn key and push down on the handle.
To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
|16mm Wide faceplate
