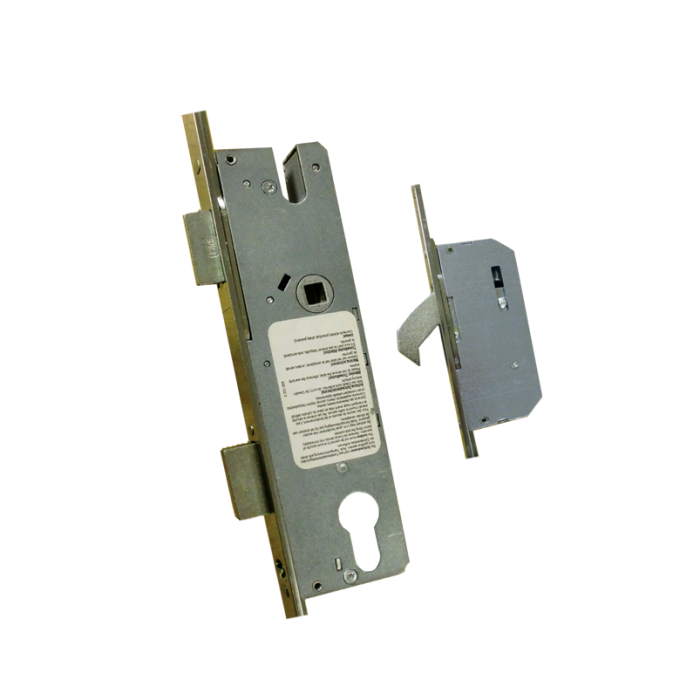

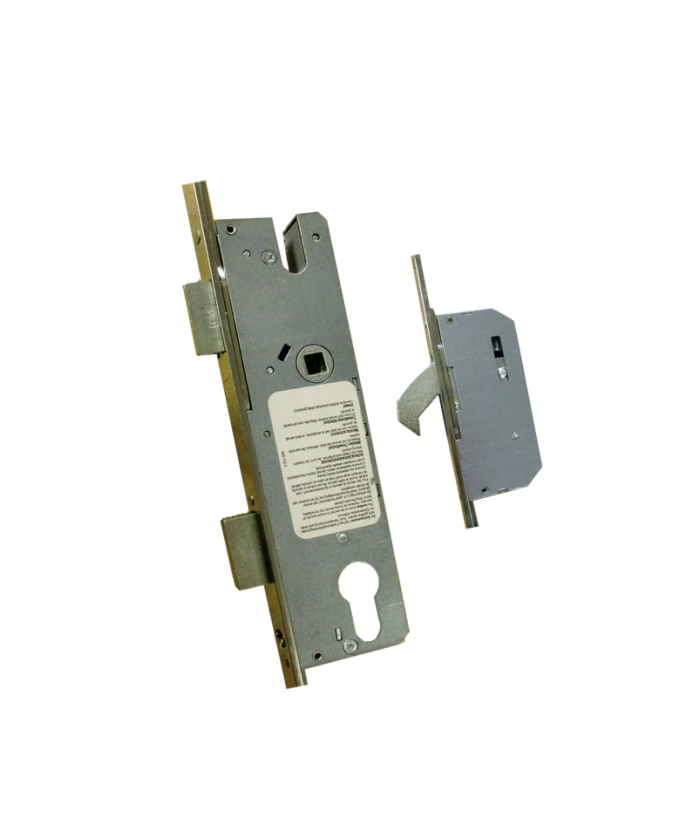

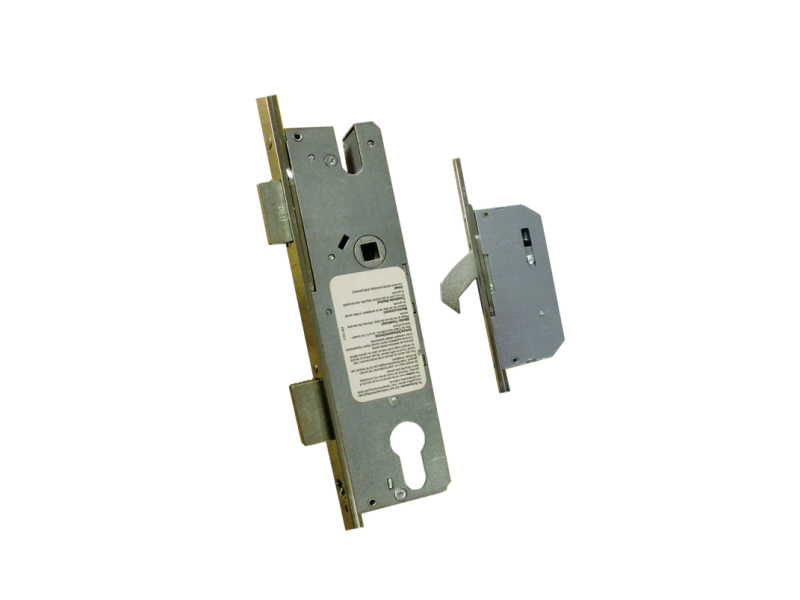

Winkhaus Cobra 2 H (Short) 1 Latch 1 Deadbolt Multipoint Lock

The Winkhaus Cobra Multipoint Lock, with 2 hooks (Short Version), as well as a latch and deadbolt.

Short version. Split spindle (Lever/Lever and Lever/Pad operations). 92mm PZ Centre.

Technical: Centre of spindle to centre of top hook: 590mm Centre of spindle to centre of bottom hook: 750mm

Available in 35mm (122840), 45mm (122921) 55mm (122922) backsets.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
