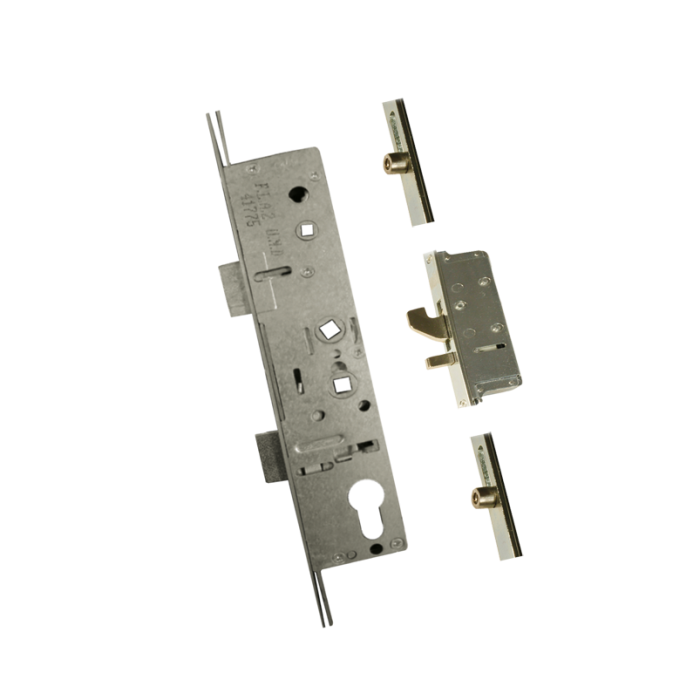

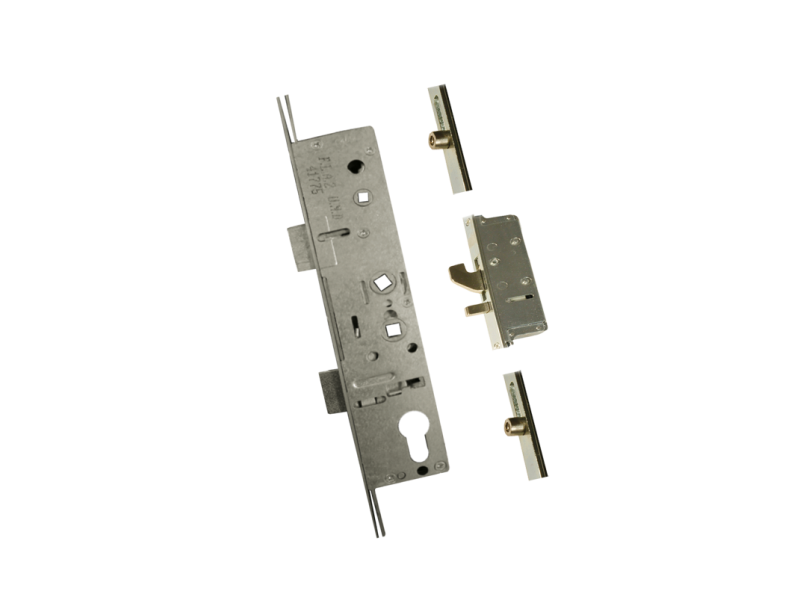

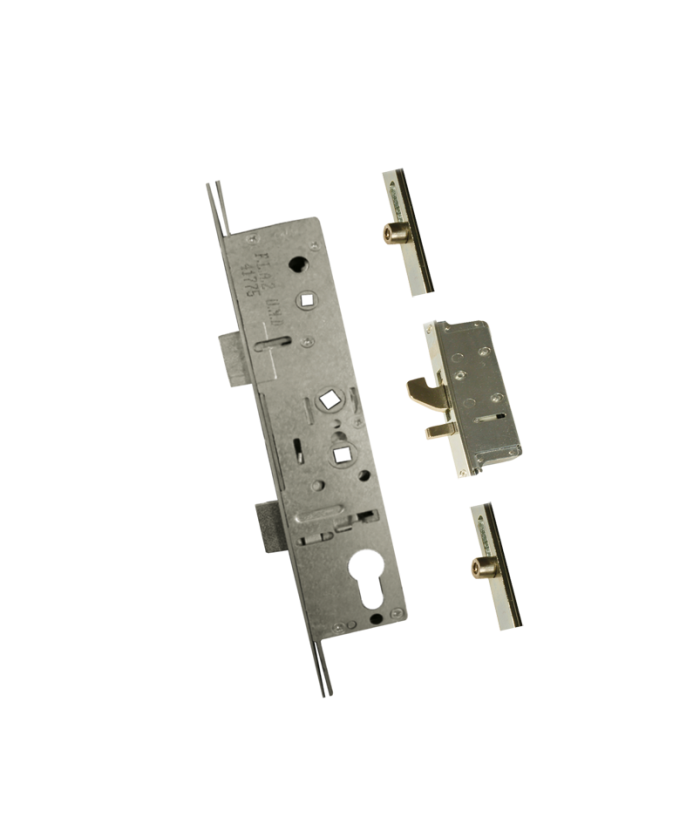

Paddock Lockmaster 2 Hooks 2 Pins 4 Rollers 1 Latch 1 Deadbolt

This multipoint lock is made by Paddock & is a direct replacement for a matching Lockmaster lock.

This lock has 2 hooks to make the lock as strong as possible, thereby keeping the door as strong as possible too.

2 Hooks. 2 Pins. 4 Rollers. 1 Latch. 1 Deadbolt. Twin Spindles. 16mm Faceplate. 92/62mm PZ Centre Available with a 35mm (106697) or 45mm (123098) Backset

This double spindle version of the Lockmaster lock is unsprung and should be used with sprung handles.

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
