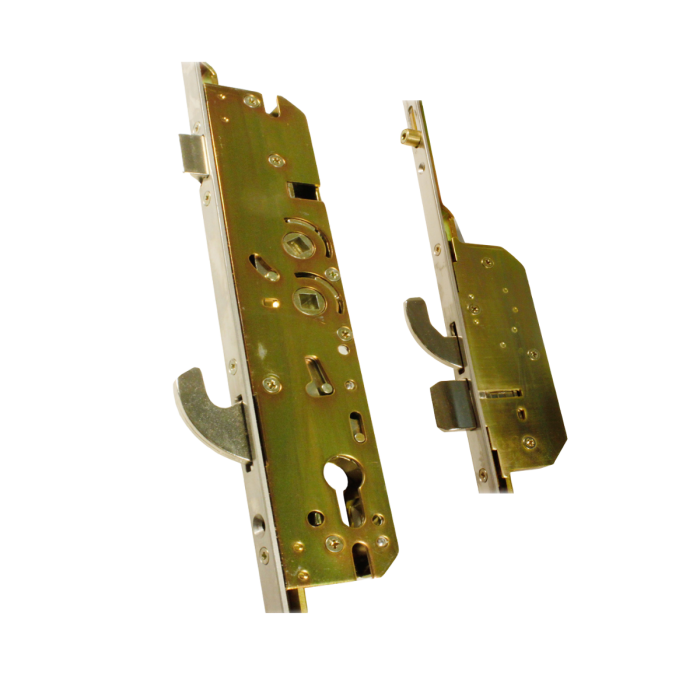

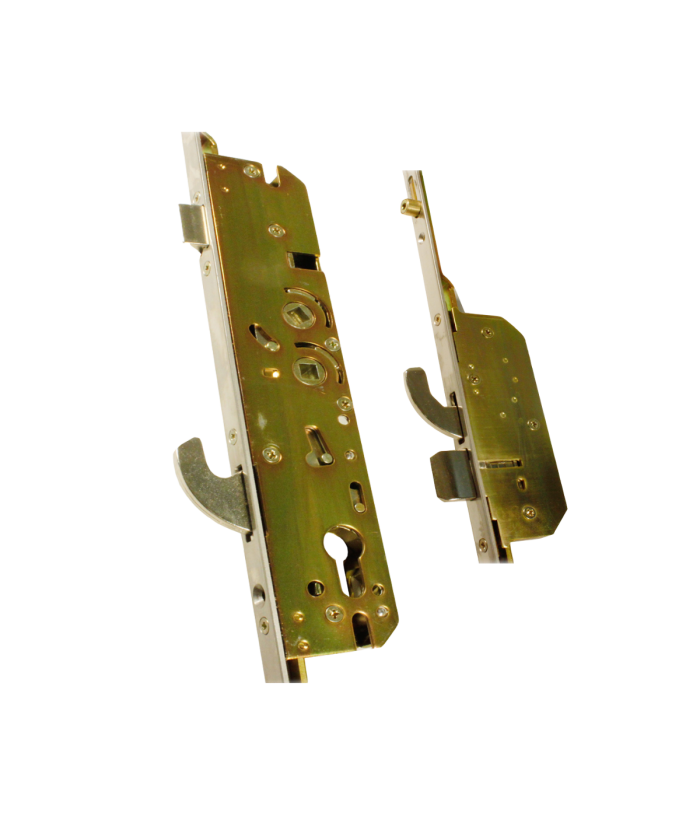

This Millenco lock will help to keep doors secured, using its 3 hooks to provide extra strength to the lock. It also has two deadbolts and two rollers to provide even more security.

It has a 35mm backset, and has a 117/86mm PZ Centre. 16mm Faceplate. (104380)

Centre of spindle hole to centre of top hook - 600mm. Centre of spindle hole to centre of top roller - 773mm. Centre of spindle hole to centre of bottom hook - 700mm. Centre of spindle hole to centre of bottom roller - 848mm.

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.
