Mila Master 2 Hooks 4 Rollers 2 Pins Twin Spindle

It is available with a 35mm backset. This high-security lock is designed for use on residential doors.

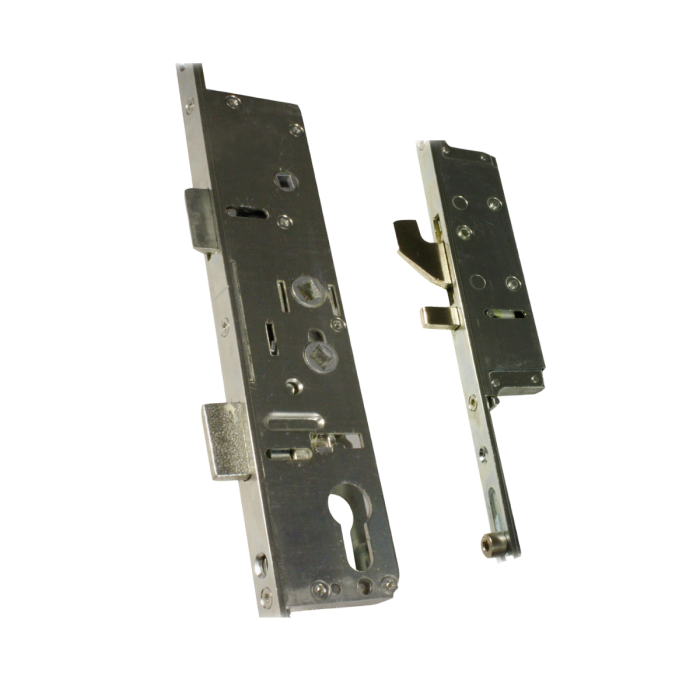

The Mila Master Lock has two hooks and four rollers which gives the lock strength and makes it harder to break into. It comes with a twin spindle so that a Lever/Pad handle can be fitted.

35mm Backset. 16mm Faceplate. 92mm PZ Centre (106223)

Technical: Centre of spindle to centre of top roller: 622mm Centre of spindle to centre of hook & pin: 435mm Centre of spindle to centre of top middle roller: 340mm Centre of spindle to centre of bottom middle roller: 405mm Centre of spindle to centre of bottom hook & pin: 595mm Centre of spindle to centre of bottom roller: 690mm

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.
