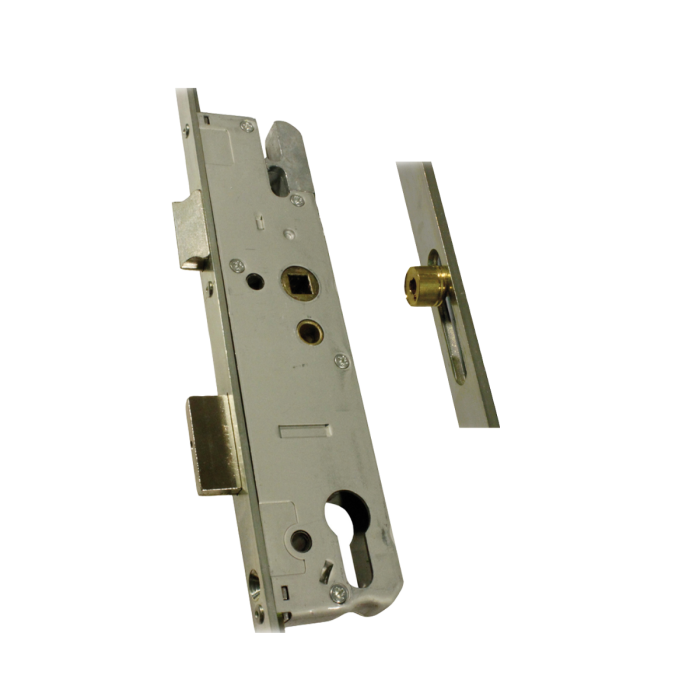

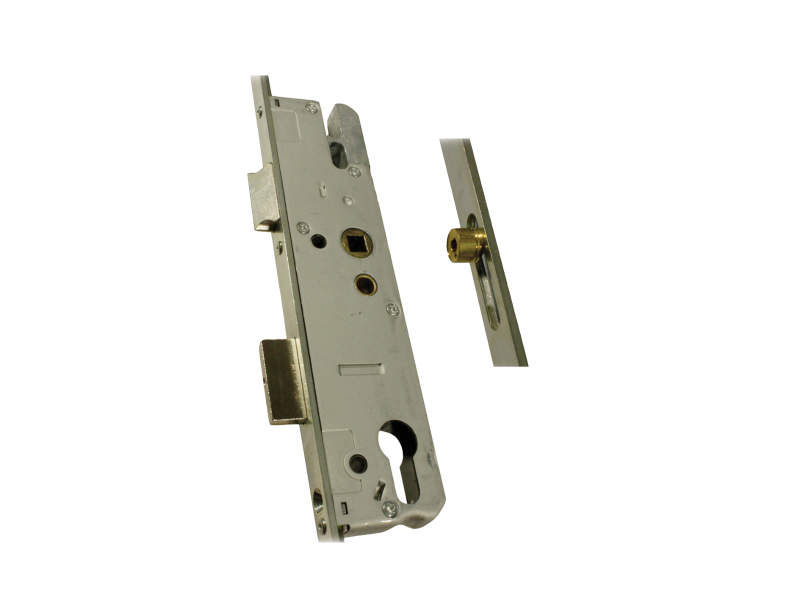

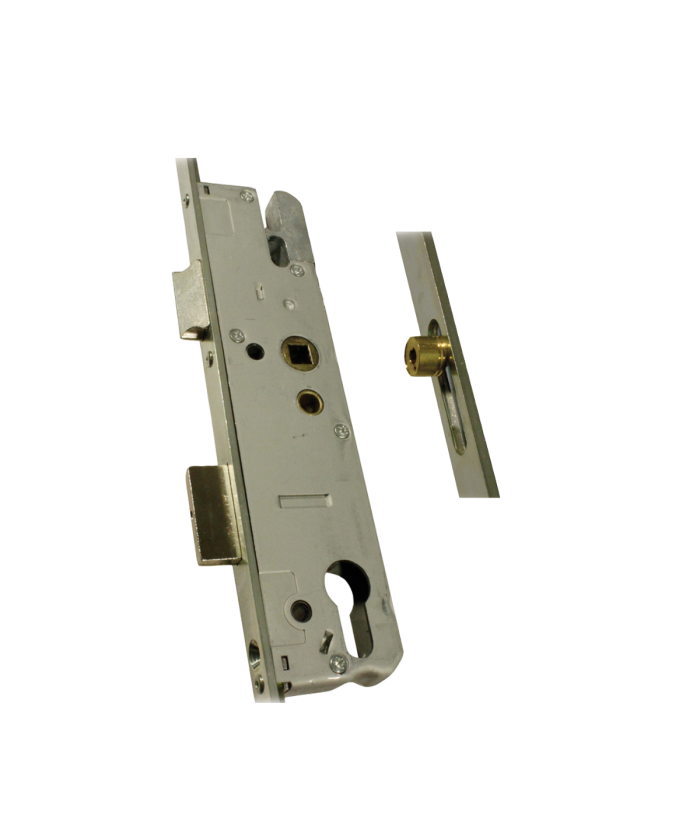

KFV Lever Operated 4 Rollers 1 Latch 1 Deadbolt

In stock
Only %1 left
SKU
KFV Lever Operated 4 Rollers 1 Latch 1 Deadbolt
Add to Compare
As low as £81.07 £67.56

25mm, 30mm, 35mm, 45mm Backsets

L/L Operation

92mm PZ Centre

16mm Faceplate Width

1 Latch, 1 Deadbolt, 4 Rollers

The KFV Lever Operated Multipoint Lock is suitable for uPVC doors and is available in 30/35/45mm backsets. This KFV Multipoint lock can be used to secure a range of uPVC doors. This KFV lock has four rollers as well as a latch and a deadbolt which provides a strong lock that resists break-in attempts.

30/35/45mm Backsets. 16mm Faceplate. 92mm PZ Centre.

Technical Information: Centre of spindle hole to centre of top roller - 825mm. Centre of spindle hole to centre of top middle roller - 275mm. Centre of spindle hole to centre of bottom roller - 805mm. Centre of spindle hole to centre of bottom middle roller - 395mm.

Available with: 25mm (109276), 30mm (101798), 35mm (101119), 45mm (110815) Backsets


L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.

More Information
ManufacturerKFV
Faceplate Width16mm Wide faceplate
PZ Measurement92mm
