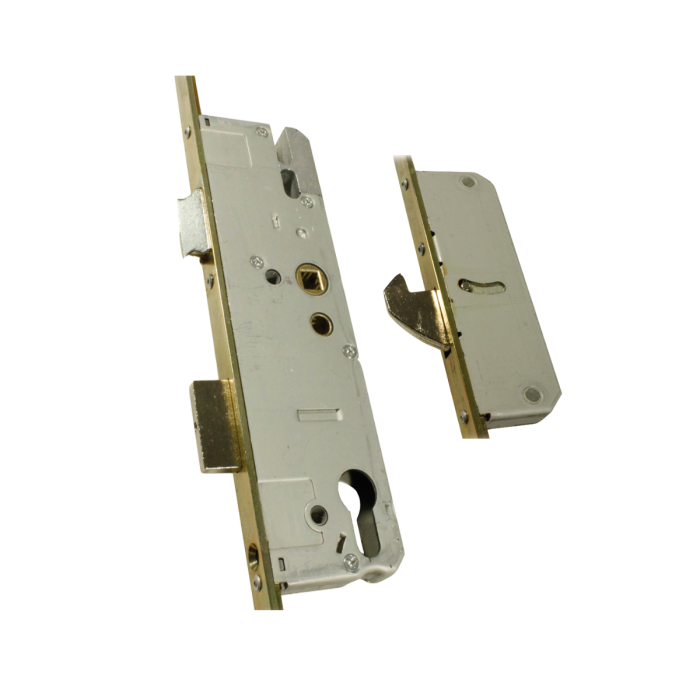

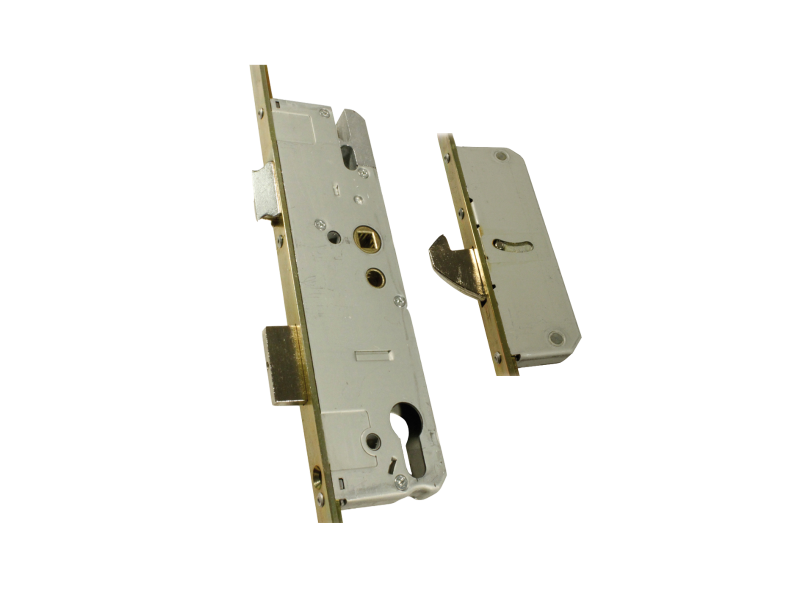

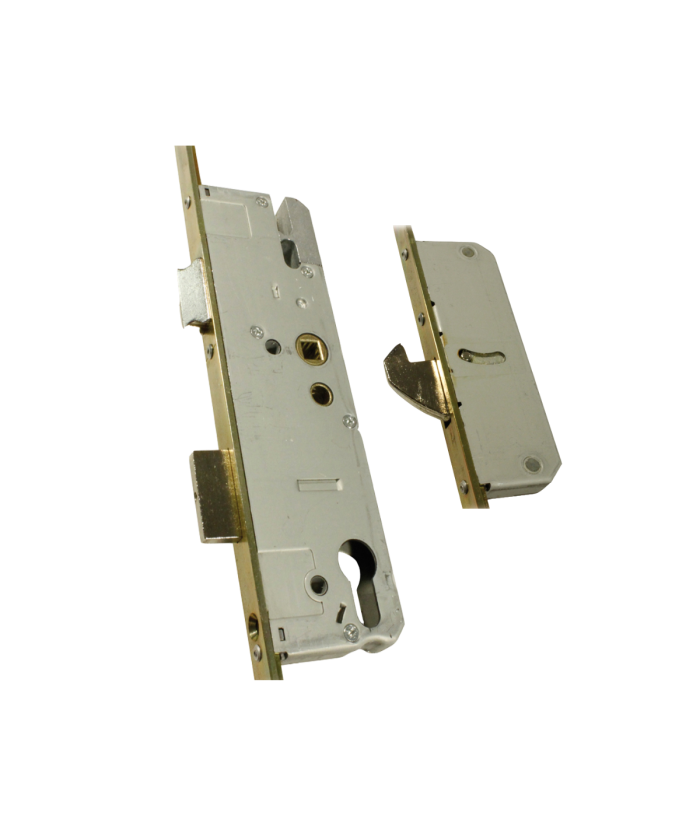

KFV Lever Operated 2 Short Hooks 1 Latch 1 Deadbolt

The KFV Lever Operated Multipoint Lock is suitable for uPVC doors and is available in 35/45mm backsets. This KFV lever operated multipoint lock provides extra security to uPVC doors. With two short hooks this lock provides excellent security for doors it is fitted into. This lock is lever operated, when in use, lift the handle to engage the main locking points and use the key to deadlock it, and push the handle down and use the key to unlock it.

35/45mm Backsets. 16mm Faceplate. 92mm PZ Centre.

Technical Specification: Centre of spindle hole to centre of top hook - 600mm. Centre of spindle hole to centre of bottom hook - 745mm.

Available with: 35mm (115265), 45mm (116604) Backsets

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
