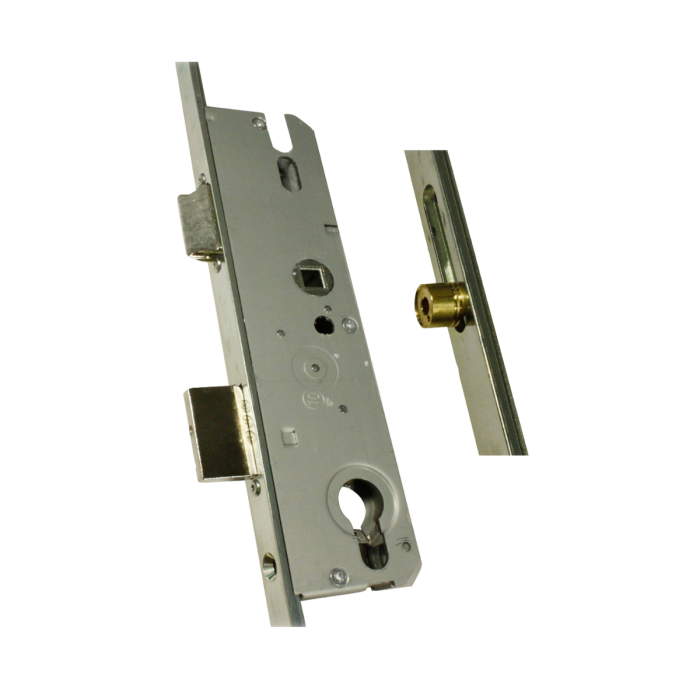

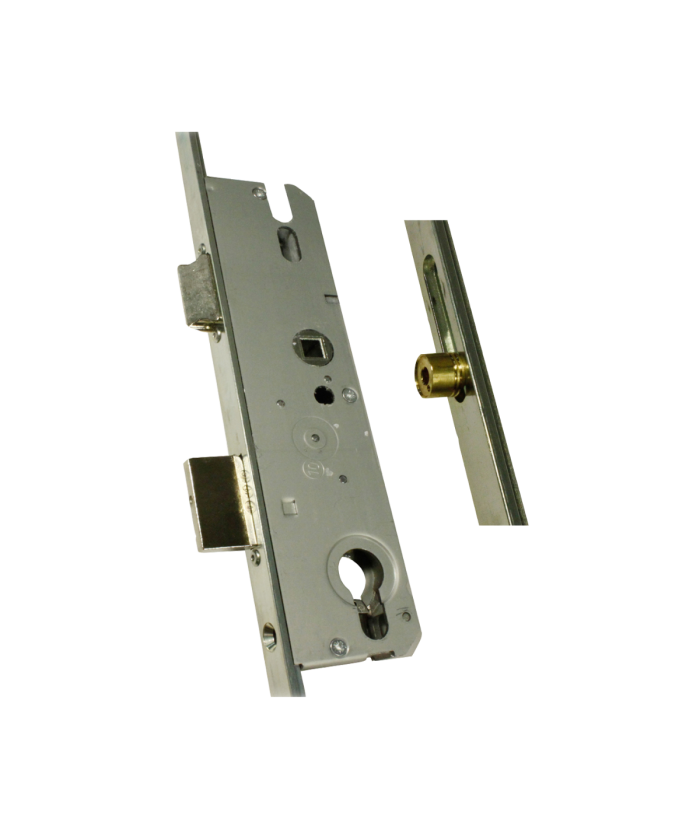

KFV Key Operated 4 Rollers 1 Latch 1 Deadbolt

The KFV Key Operated Multipoint Lock is suitable for uPVC doors and is available in 25/30/35/45mm backsets. This key operated multipoint lock from KFV provides extra security to doors, and uses a simple key locking method. It has four rollers, as well as a latch and deadbolt to provide excellent security for your home.

25/30/35/45mm Backsets. 16mm Faceplate. 92mm PZ Centre.

Technical Specification: Centre of spindle hole to centre of top roller - 825mm. Centre of spindle hole to centre of middle top roller - 275mm. Centre of spindle hole to centre of bottom roller - 805mm. Centre of spindle hole to centre of middle bottom roller - 395mm.

Available with: 25mm (101057), 30mm (102610), 35mm (101058), 45mm (101123) Backsets

K: Key Operated

To Lock - Turn the key as many times as necessary to engage all locking points and deadlock.

To Unlock - Turn key as many times as necessary to release the lock and then operate key to release the latch.
