Fullex Crimebeater XL 3 Hook 4 Roller 2 Pins

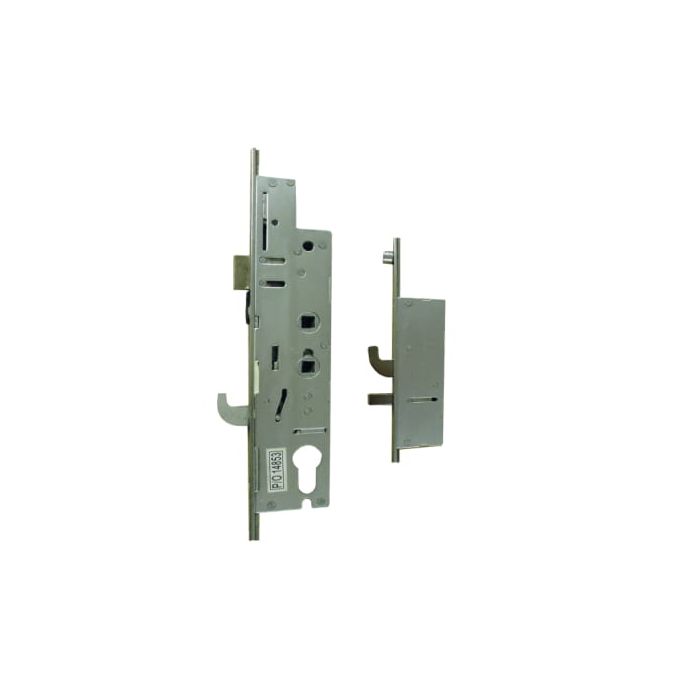

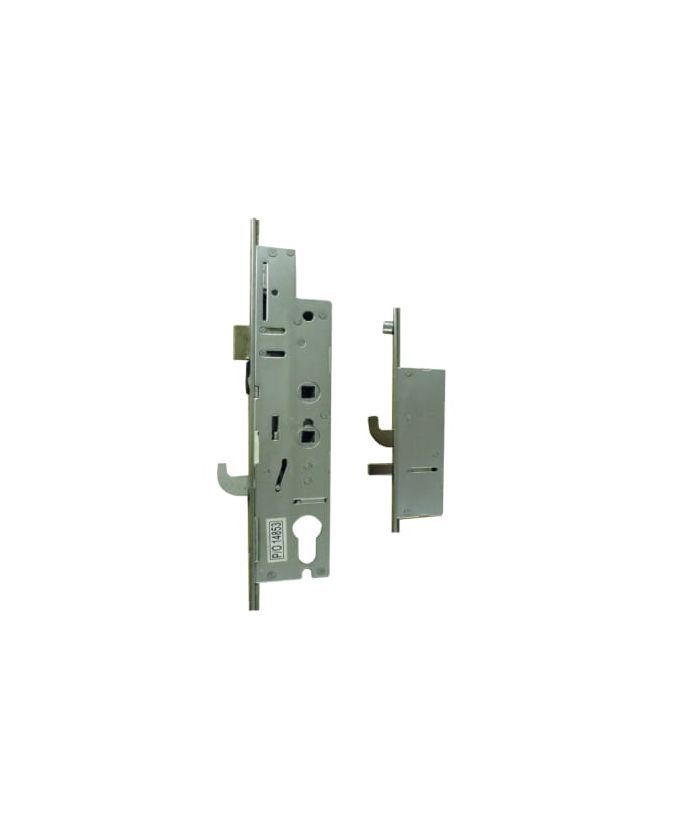

The Fullex Crimebeater XL, 3 Hooks, 4 Rollers, 2 Pins multipoint lock for uPVC doors. This door lock has been tested to PAS 24 and Secured by Design security standards.

The Fullex Crimebeater XL is a multipoint lock with 92/62mm PZ centres. This lock has three opposing hooks for security and strength, as well as four rollers for smooth operation. Lever/Pad Operation.

Tested to PAS 24 Security and Secured by Design standards.

Technical Information: Centre of spindle hole to centre of top roller: 700mm Centre of spindle hole to centre of top hook: 635mm Centre of spindle hole to centre of lower top roller: 505mm Centre of spindle hole to centre of higher bottom roller: 465mm Centre of spindle hole to centre of bottom hook: 600mm Centre of spindle hole to centre of bottom roller: 675mm

Available with: 35mm (116390) Backset

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
