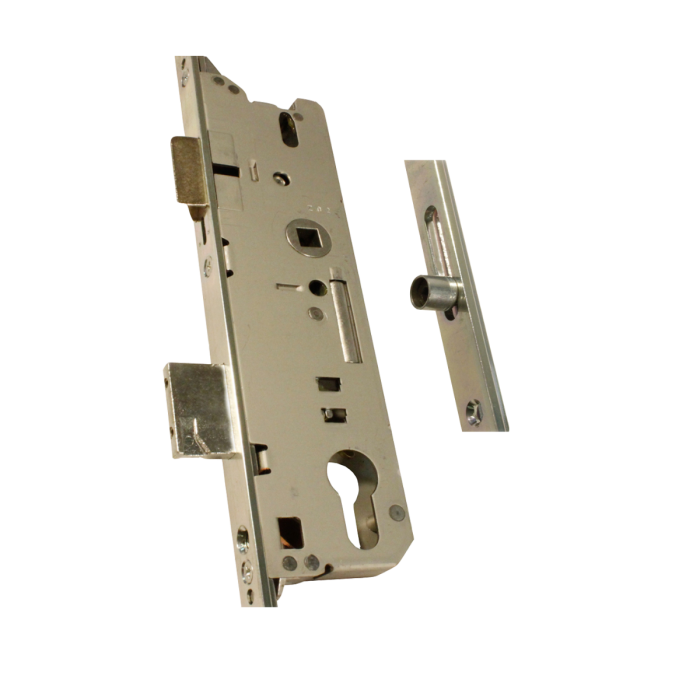

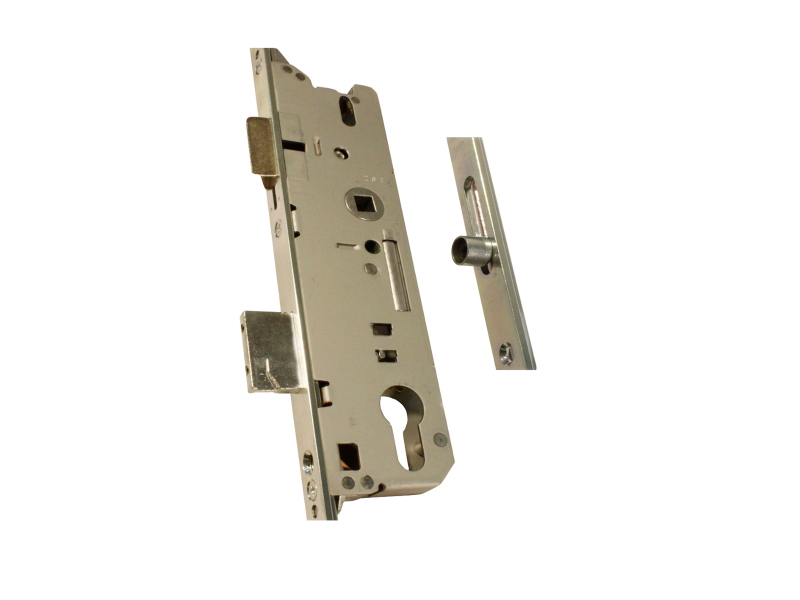

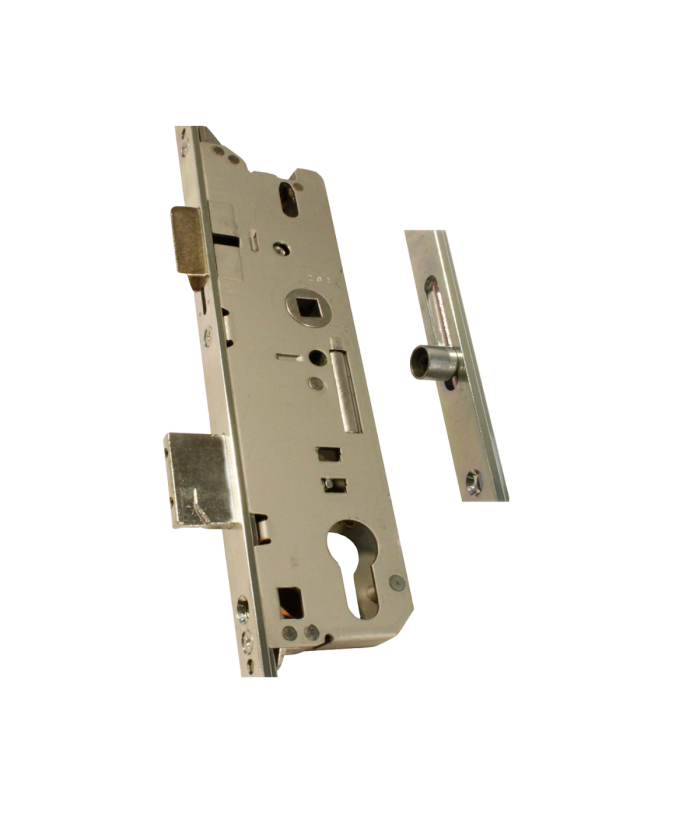

Fuhr 4 Rollers 1 Latch 1 Deadbolt

Fuhr multipoint lock is suitable for use with uPVC doors and is available in 25/30/35/45mm backsets.

This Fuhr lock has four rollers, as well as a latch and deadbolt.

Split spindle locks can be used as lever/pad operation or lever/lever (solid spindle).

Technical Information: Centre of spindle to centre of top roller: 750mm. Centre of spindle to centre of top middle roller: 355mm. Centre of spindle to centre of bottom roller: 345mm. Centre of spindle to centre of bottom middle roller: 760mm.

Available with: 25mm Backset (118077) 30mm Backset (104296) 35mm Backset (107773) 45mm Backset (118081)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
