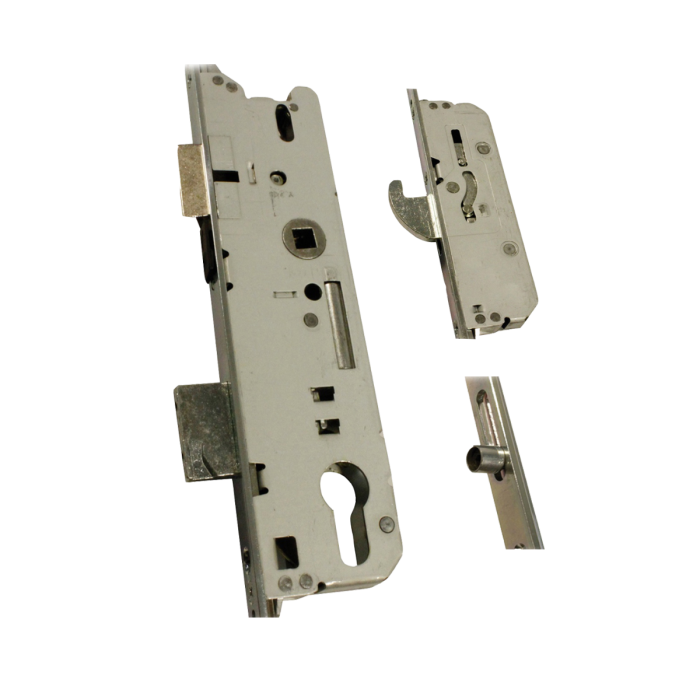

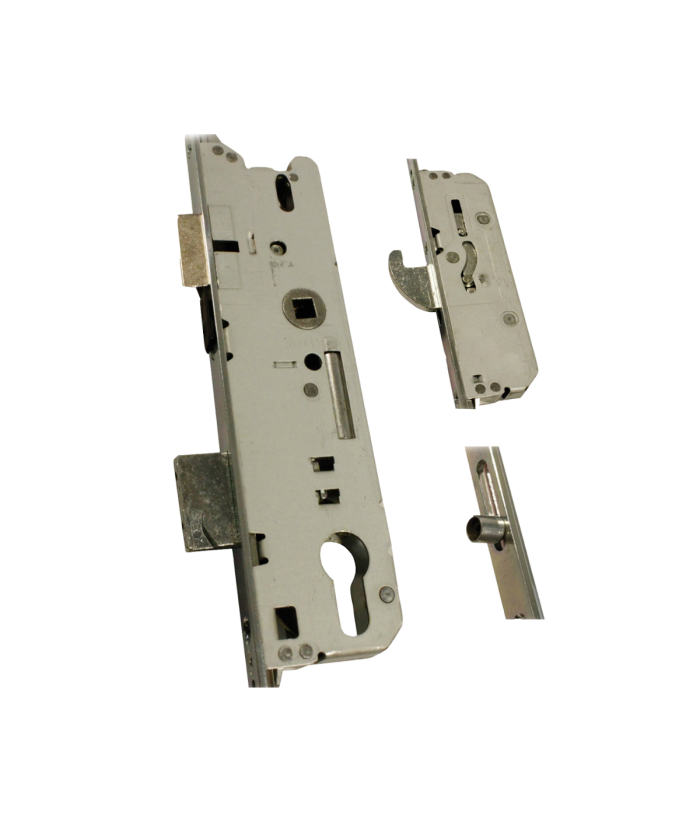

Fuhr 2 Hooks 2 Rollers 1 Deadbolt

This Fuhr Multipoint Lock is suitable for uPVC doors and is available in 30/35mm backsets.

It has two hooks and two rollers as well as a deadbolt. Can be used as lever/pad operation (split spindle) or lever/lever (solid spindle)

Secured by design.

Technical Information: Centre of spindle to centre of top hook: 720mm Centre of spindle to centre of top roller: 360mm Centre of spindle to centre of bottom roller: 345mm Centre of spindle to centre of bottom hook: 770mm

Available with: 30mm Backset (103134) 35mm Backset (101114)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
