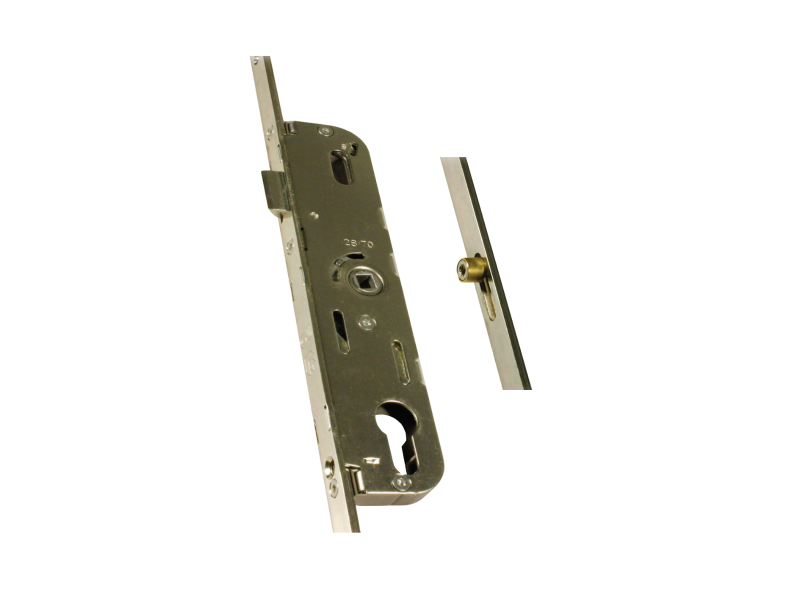

Ferco 4 Rollers 1 Latch Multipoint Lock

Originally used for Balcony doors. Latch only lock.

Replacement for the old Ferco 2 Roller.

Technical Information: Centre of spindle to centre of top roller: 725mm Centre of spindle to centre of top middle roller: 240mm Centre of spindle to centre of bottom middle roller: 220mm Centre of spindle to centre of bottom roller: 690mm

Available with: 28mm (103041) and 35mm (103159) backsets

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
