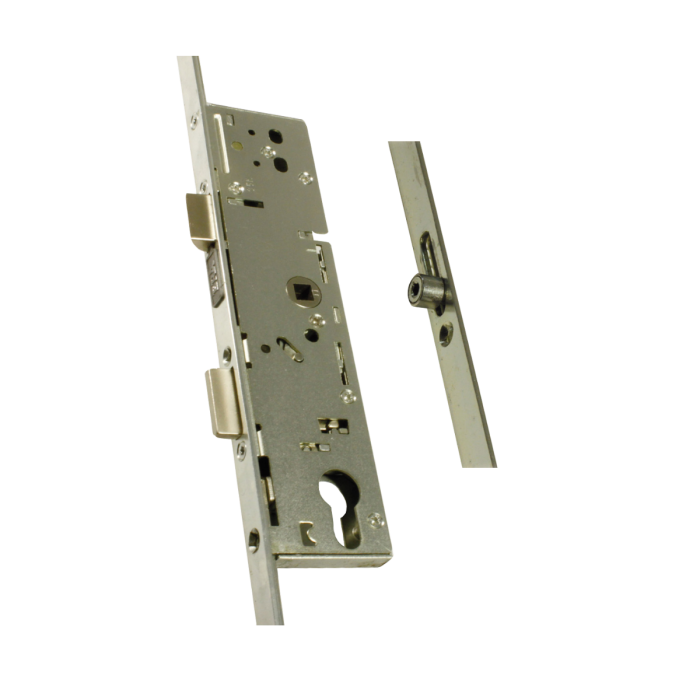

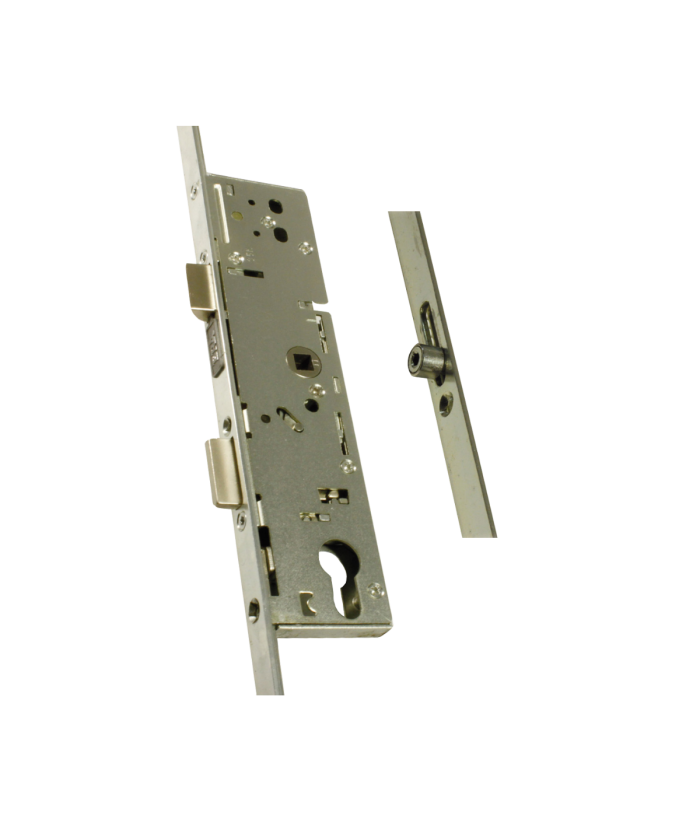

Era 4 Rollers 1 Latch 1 Deadbolt Multipoint Lock

Suitable for uPVC Doors. Available as 35mm and 45mm backsets.

Sprung mechanism - unsprung handles can be used. Can be used as Lever/Lever operation (solid single spindle) or Lever/Pad operation (Split Spindle).

Technical Information: Centre of spindle to centre of top roller: 710mm Centre of spindle to centre of middle top roller: 240mm Centre of spindle to centre of middle bottom roller: 390mm Centre of spindle to centre of top roller: 860mm

Available with: 35mm Backset (101101) 45mm Backset (101099)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
