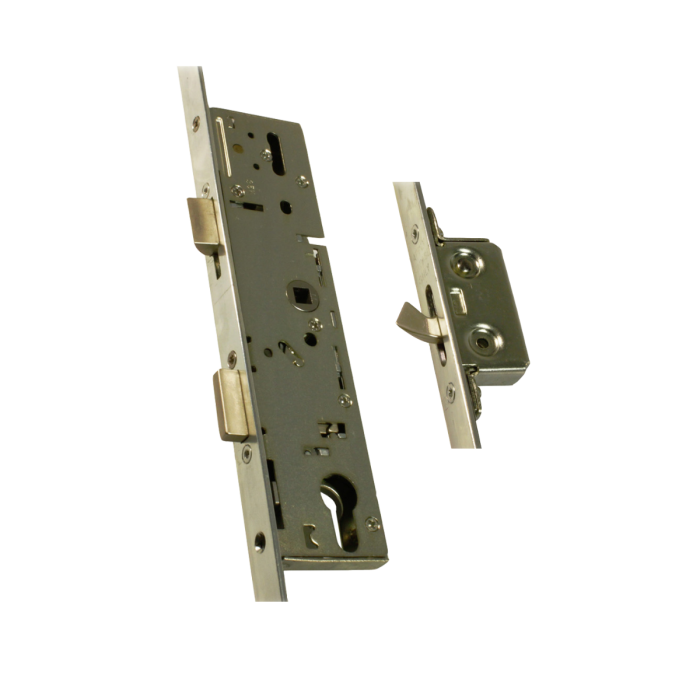

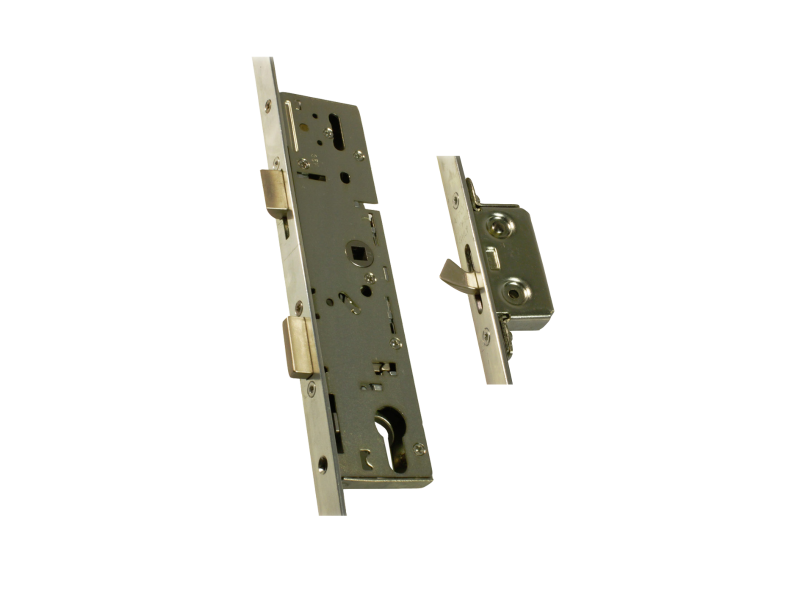

Era 2 Small Hooks 20mm Wide Faceplate Multipoint Lock

This ERA Multipoint Lock is suitable for timber doors and is available in 35/45mm backsets.

This lock has two small hooks as well as a wide faceplate. 20mm wide faceplate with rounded ends. Can be used as lever/lever operation (solid spindle) or lever/pad operation (split spindle).

Technical Information: Centre of spindle to centre of top hook: 670mm Centre of spindle to centre of bottom hook: 695mm

Available with: 35mm Backset (101102) 45mm Backset (101129)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
