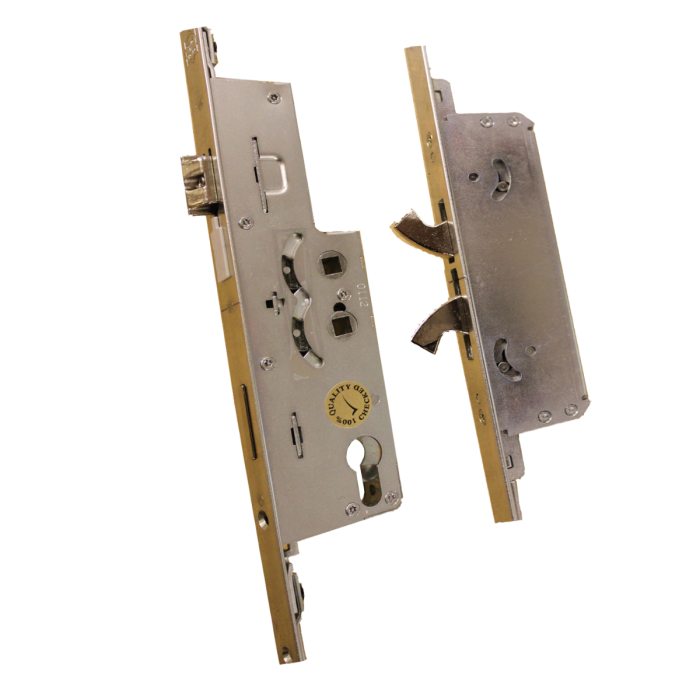

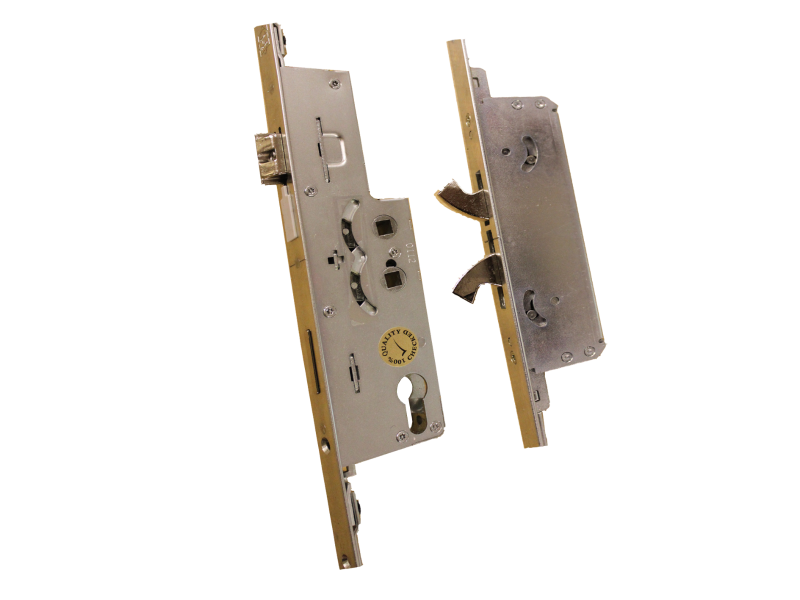

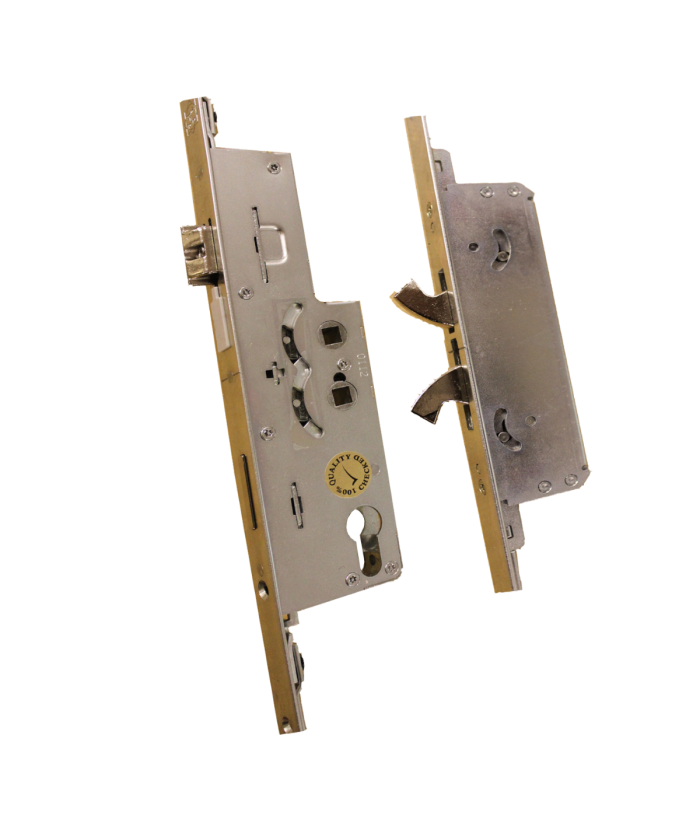

Avocet Affinity 4 Hook Twin Spindle Multipoint Lock

The Avocet Affinity Lock is designed to be used on timber and composite doors with 4 opposing hooks to give extra strength and security. Has a smooth and robust operation. Complies to British Standard and is tested to PAS 24 security.

Suitable for timber & composite doors. 4 Opposing Hooks for maximum security. Available in 35mm and 45mm backset Can be used as Lever/Lever (top spindle operation) or Lever/Pad (both spindle operation).

Complies with BS EN 1670 Class 5. Tested to PAS24. Secured by Design Accredited. Technical: Centre of spindle to centre of top hooks: 775mm Centre of spindle to centre of bottom hooks: 775mm

Available as: 35mm Backset (122021) 45mm Backset (122033)

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
