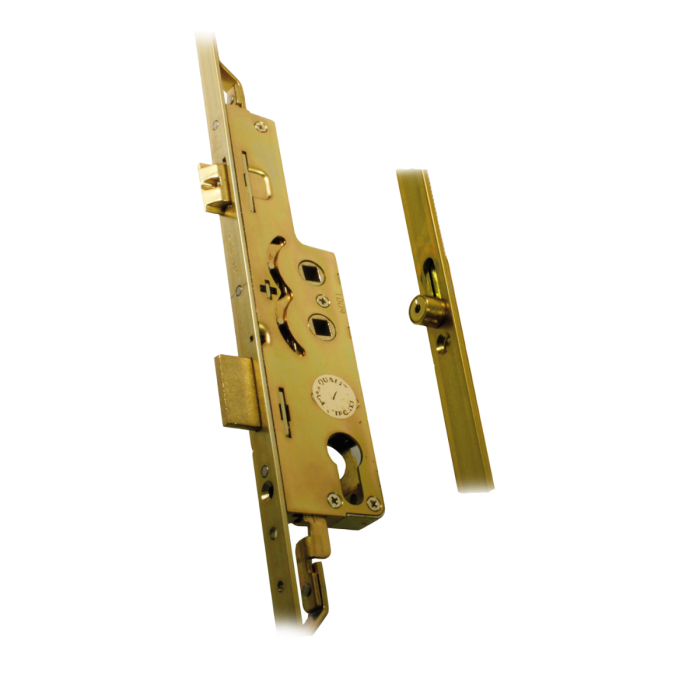

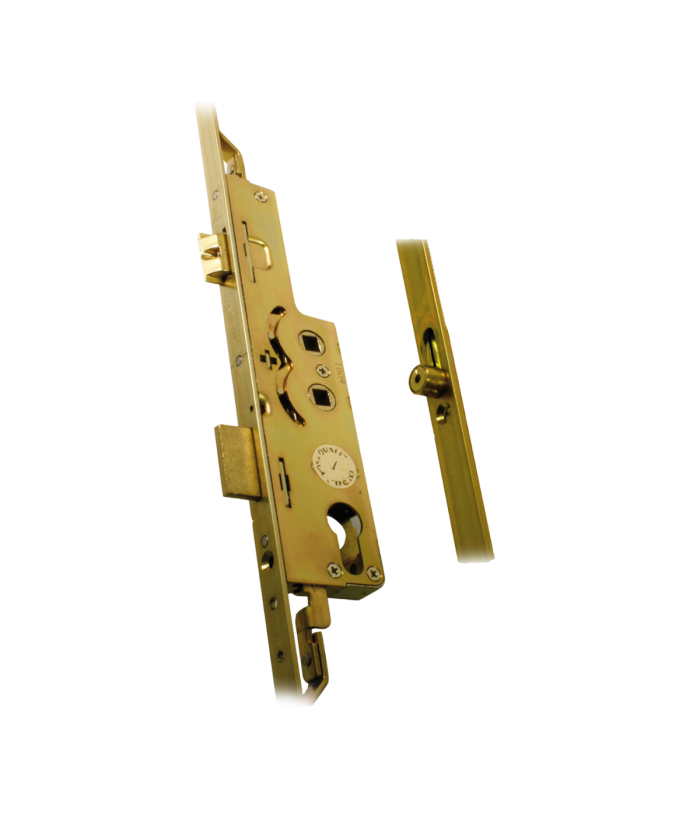

Avocet 4 Rollers Twin Spindle Multipoint Lock

Suitable for uPVC doors. Suitable for use as lever/pad (both spindle operation) or lever/lever (top spindle operation). Reversible centre latch to suit all applications

80, 160 and 260mm shootbolts available

35mm Backset. 92/62mm PZ Centre.

Technical:

Centre spindle to top roller: 680mm

Centre spindle to top middle roller: 180mm

Centre spindle to bottom middle roller: 200mm

Centre spindle to bottom roller: 800mm

Available with: 35mm Backset (101075)

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
