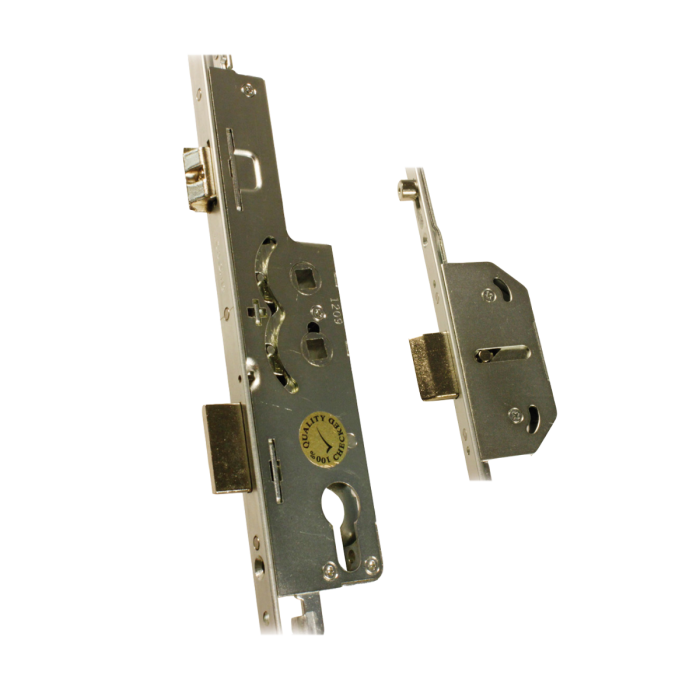

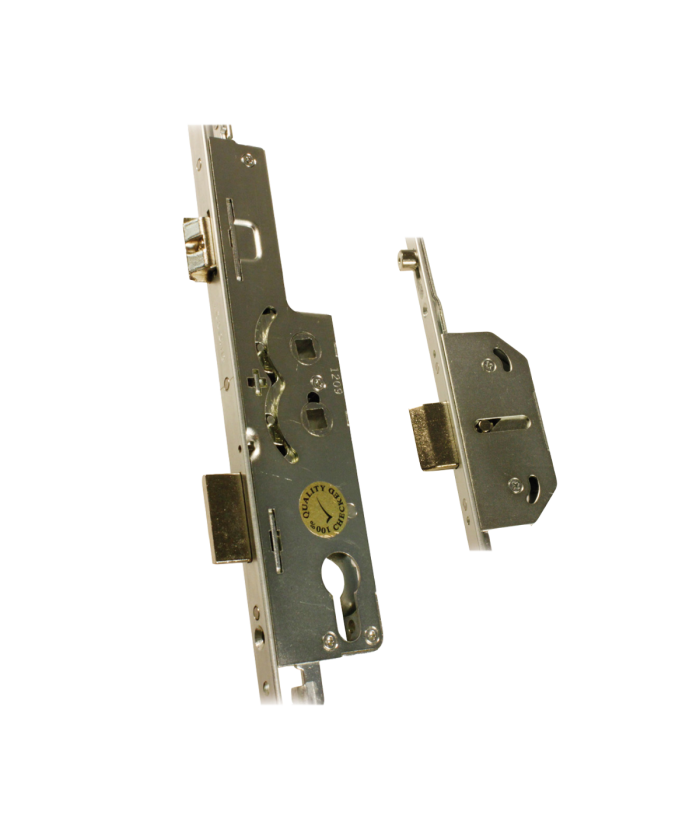

Avocet 3 Deadbolts 4 Roller Twin Spindle Multipoint Lock

The Avocet Multipoint Lock is suitable for uPVC doors with 35mm backset. This version of the Avocet multipoint lock has three deadbolts and four rollers.

Can be used as Lever/Pad (both spindle operation) or Lever/Lever (top spindle operation). Shootbolts available.

Technical: Centre of spindle to centre top roller: 765mm

Centre of spindle to centre of top deadbolt: 685mm

Centre of spindle to centre of top middle roller: 190mm

Centre of spindle to centre of bottom middle roller: 200mm

Centre of spindle to centre of bottom deadbolt: 715mm

Centre of spindle to centre of bottom roller: 795mm

Available with: 35mm Backset (114077)

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
