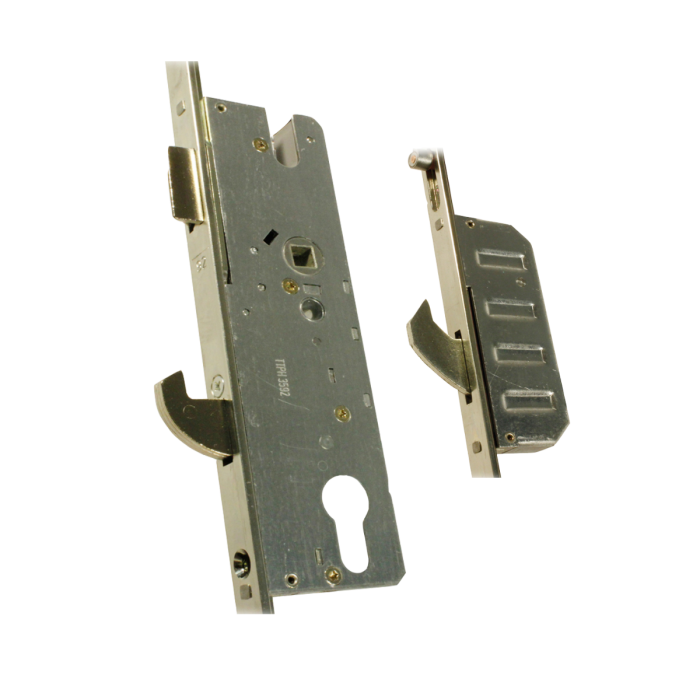

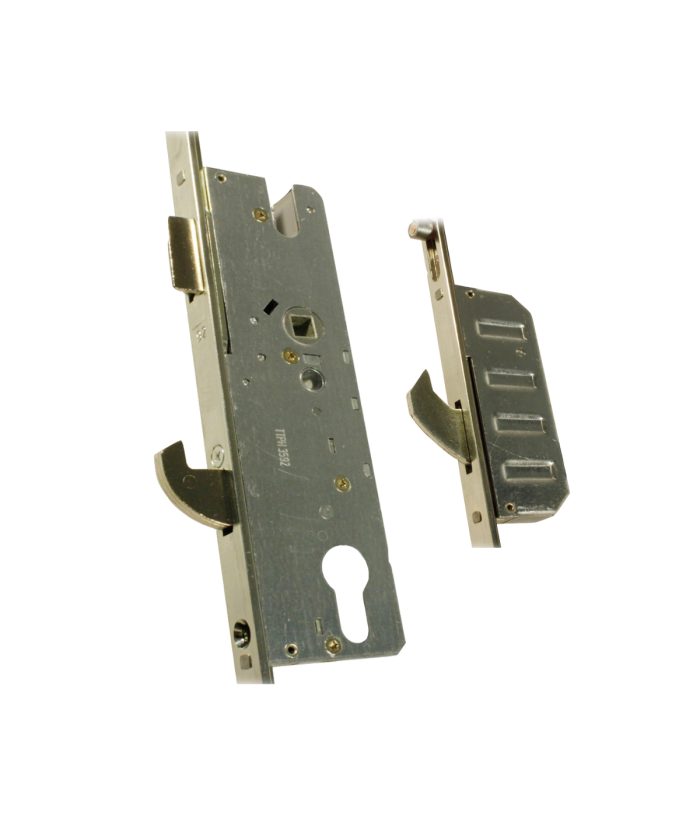

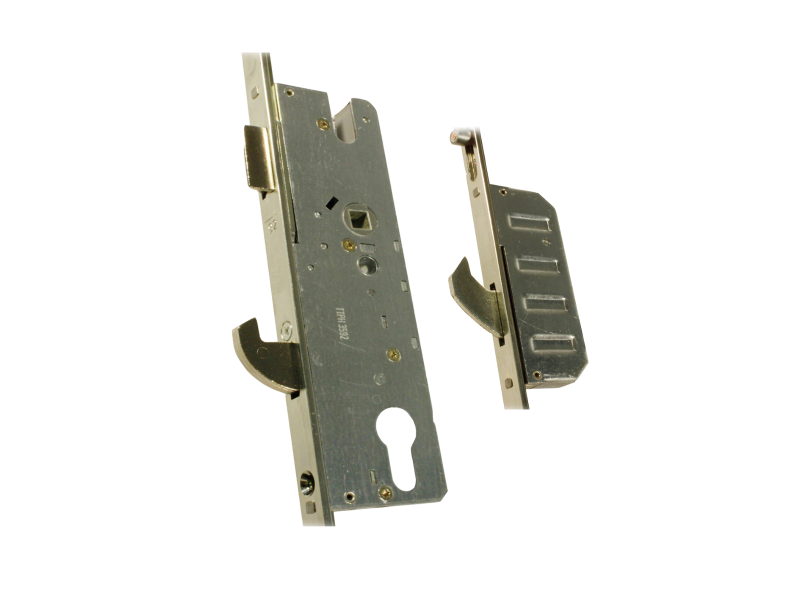

Winkhaus Scorpion 3 Hooks 2 Roller (Short) 1 Latch Multipoint
92mm PZ Centre
16mm Faceplate Width
1 Latch, 3 Hooks, 2 Rollers
This is a short version of the Winkhaus Scorpion 3 Hook, 2 Roller Multipoint Lock. For use in uPVC doors. Short Version.

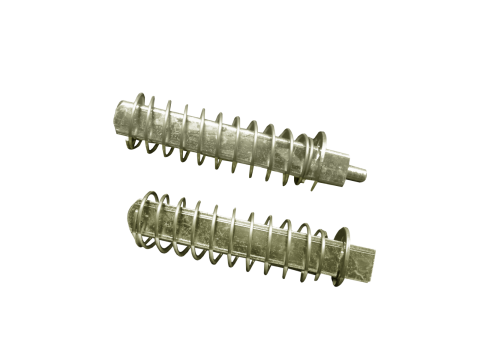

Split Spindle (Lever/lever and lever/pad operations).
92mm PZ Centre. 35mm Backset. 16mm Faceplate.
Technical: Centre of spindle to centre of top roller: 600mm Centre of spindle to centre of top hook: 510mm Centre of spindle to centre of bottom hook: 705mm Centre of spindle to centre of bottom roller: 790mm
K: Key Operated
To Lock - Turn the key as many times as necessary to engage all locking points and deadlock.
To Unlock - Turn key as many times as necessary to release the lock and then operate key to release the latch.
|16mm Wide faceplate
