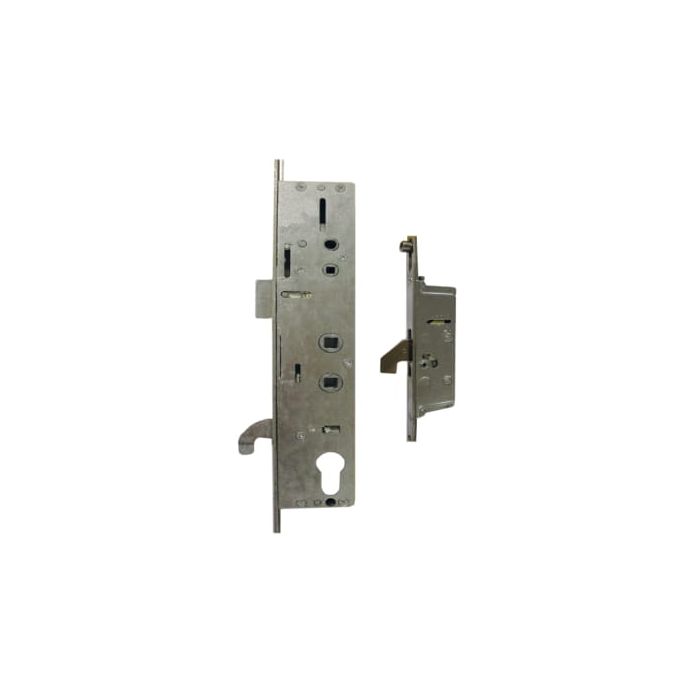

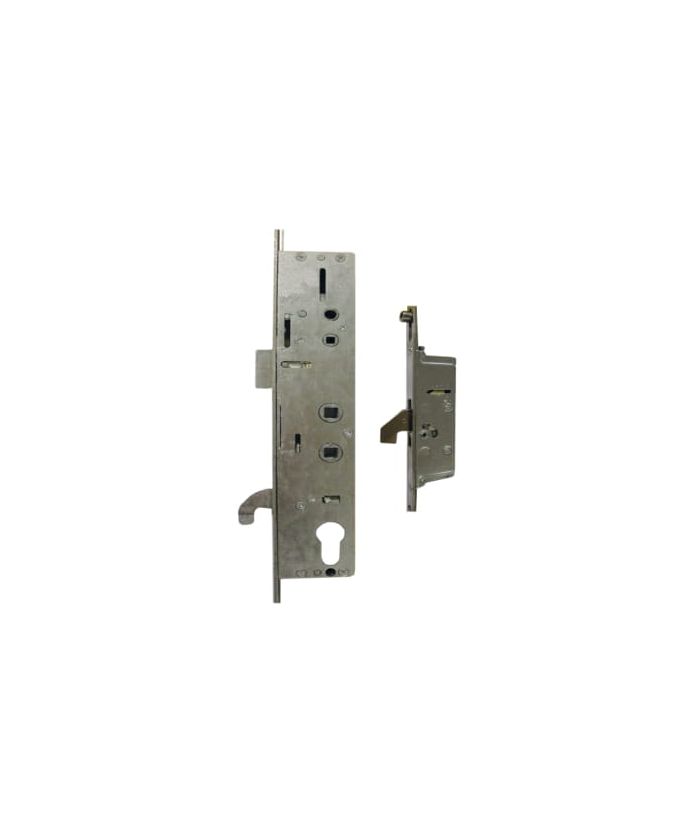

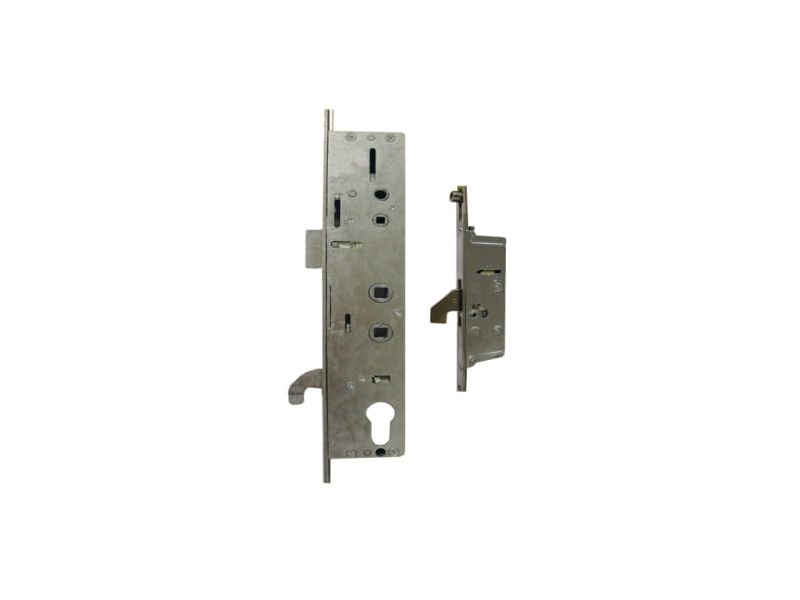

Safeware 3 Hooks 4 Rollers 1 Latch Multipoint Door Lock

Safeware multipoint door lock, with three hooks, four rollers and a latch. It has 3 Hooks 4 Rollers & 1 Latch & a twin spindle.

This Safeware multipoint lock can be used as either lever/lever or lever/pad.

16mm faceplate. Twin Spindle - 92/62mm centres.

Can be used as lever/pad (both spindles) or lever/lever (top spindle). Centre latch and hook.

Technical: Centre of spindle to centre of top roller: 795mm Centre of spindle to centre of top hook: 680mm Centre of spindle to centre of top middle roller: 390mm Centre of spindle to centre of bottom middle roller: 420mm Centre of spindle to centre of bottom hook: 715mm Centre of spindle to centre of bottom roller: 825mm

Available with: 35mm (110337) Backset

T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
