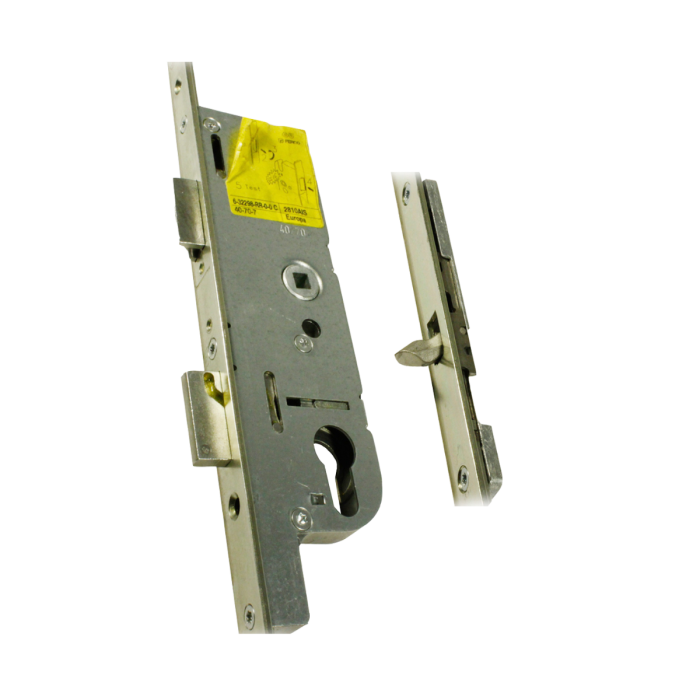

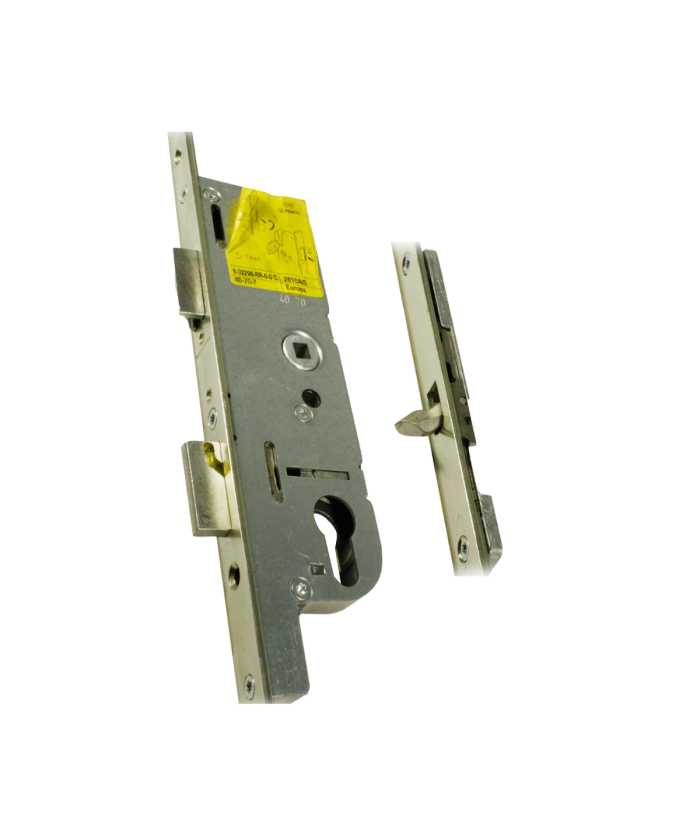

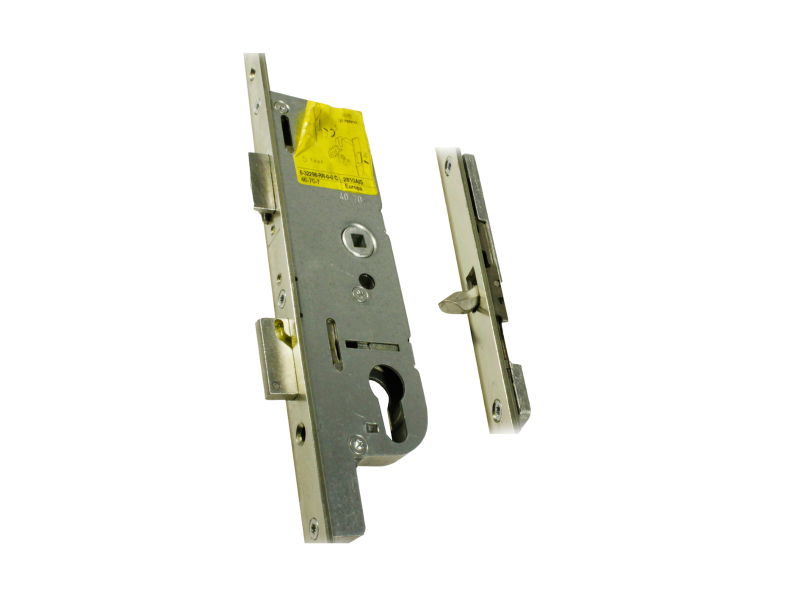

G-U Timber 2 Small Hooks Wide Faceplate

The G-U Timber Multipoint Lock is suitable for use with timber and composite doors. Lever/lever and lever/pad operations.

Technical Information: Centre of latch to centre of top hook: 850mm Center of latch to centre of bottom hook: 910mm

Available with: 40mm (110971) 50mm (102115) Backsets.

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
