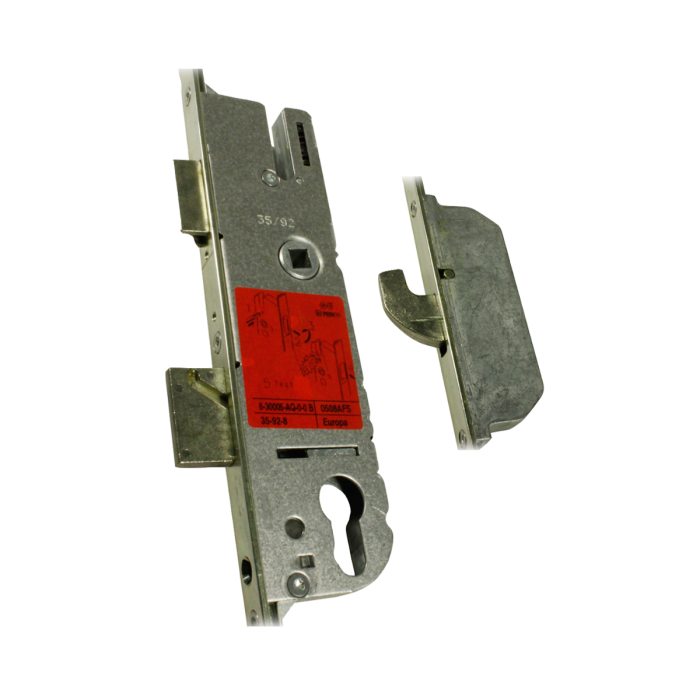

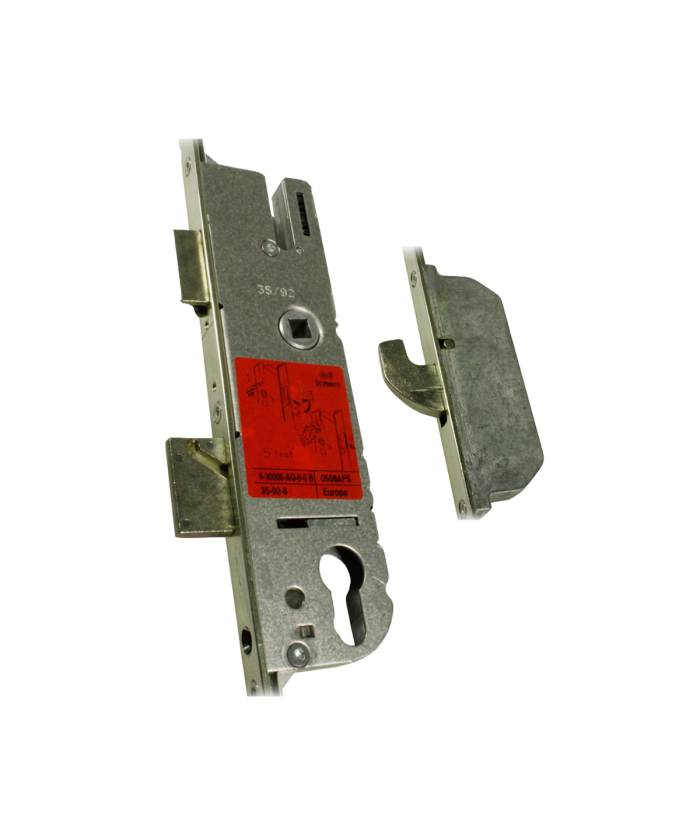

G-U 2 Hooks 1 Latch 1 Deadbolt
28mm/35mm/40mm/45mm Backset
L/L + S/S Operation
92mm PZ Centre
16mm Faceplate Width
1 Latch, 1 Deadbolt, 2 Hooks
Lever/lever and lever/pad operations.
Technical Information: Centre of latch to centre of top hook: 545mm Centre of latch to centre of bottom hook: 690mm
Available with: 28mm (114327) 35mm (L/L 104225) (S/S 101045) 40mm (123088) 45mm (101046)
L/L: Lever Operated.
To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.
To Open From Inside - Turn key and push down on the handle.
To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
Manufacturer | G-U |
---|---|
Faceplate Width | 16mm Wide faceplate |
PZ Measurement | 92mm |
