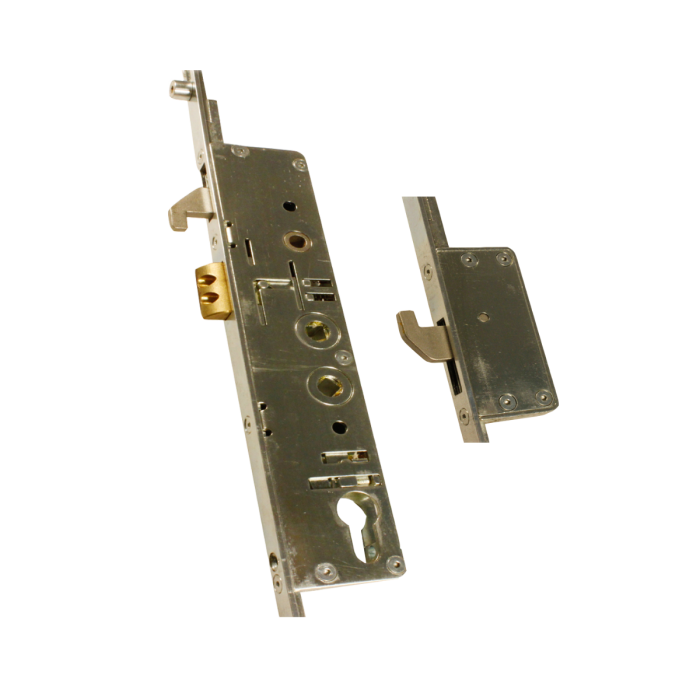

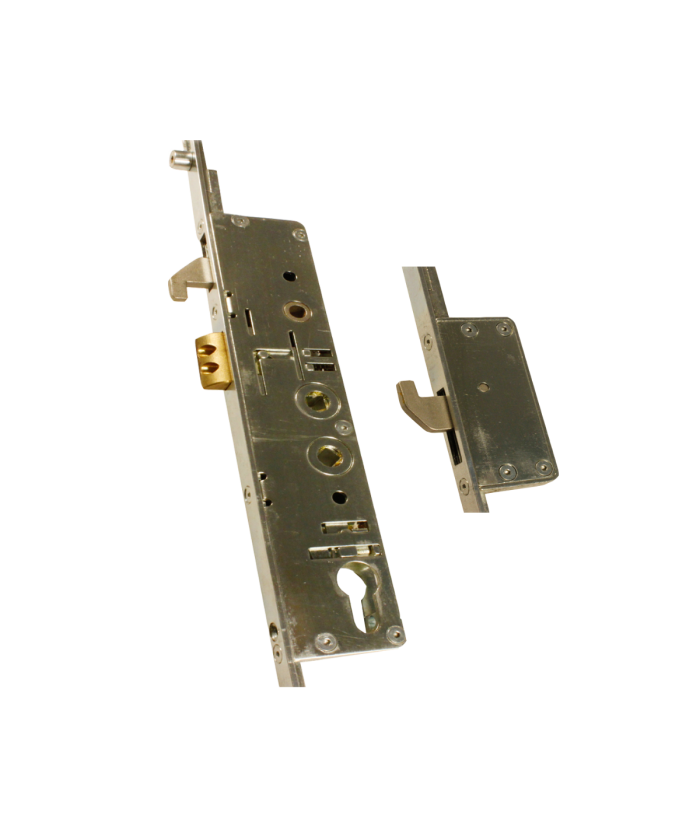

Fab & Fix 3 Hooks 3 Rollers 1 Latch Twin Spindle Multipoint Lock

Out of stock
Only %1 left
SKU
Fab & Fix 3 Hooks 3 Rollers 1 Latch Twin Spindle Multipoint Lock
Add to Compare

35mm Backset

L/L + T/S Operation

92mm PZ Centre

16mm Faceplate Width

3 Rollers, 3 Hooks 1 Latch.

Suitable for uPVC doors. Unsprung mechanism - sprung handles are to be used. Hook above latch.

Can be used as lever/lever operation (top spindle only) or lever/pad operation (both spindles).

Secured by design.

Technical Information: Centre of spindle to centre of top roller: 655mm Centre of spindle to centre of top hook: 535mm Centre of spindle to centre of middle roller: 175mm Centre of spindle to centre of bottom hook: 565mm Centre of spindle to centre of bottom roller: 675mm

Available with: 35mm Backset (115521)


T/S: Twin Spindle.

To Lock - Lift handle up to engage locking points. One full turn of the key, door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and turn the key to release the door latch.


L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.

More Information
ManufacturerFab & Fix
Faceplate Width16mm Wide faceplate
PZ Measurement92mm
