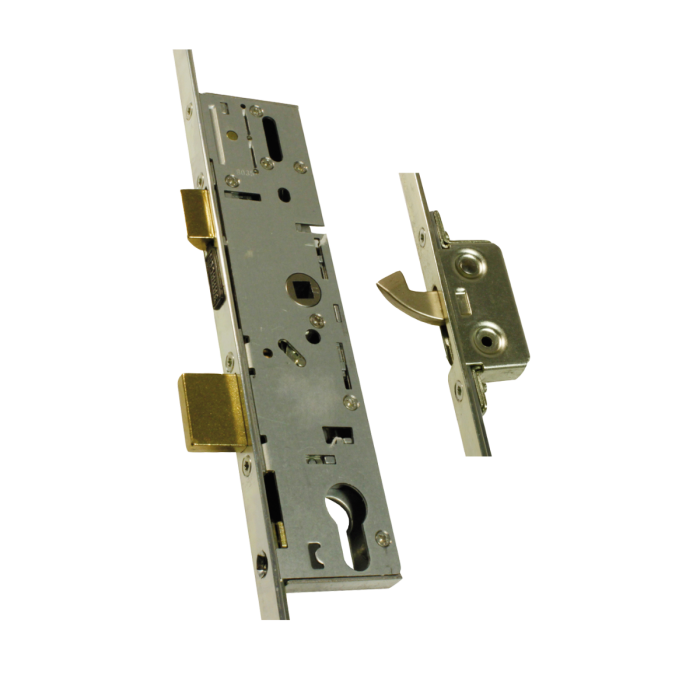

Era 2 Small Hooks Multipoint Lock

Suitable for uPVC, Timber and Composite doors

Available as 35mm and 45mm Backsets.

Sprung lock - handles can be unsprung.

Can be used as lever/lever operation (one solid spindle) or lever/pad operation (split spindle)

Designed to meet the requirements of PAS 24 as part of a compliant door system, and BS 6375.

Technical Information: Centre of spindle to centre of top hook: 560mm Centre of spindle to centre of bottom hook: 660mm

Available with: 35mm Backset (101128) 45mm Backset (101095)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
