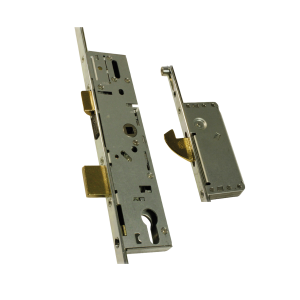

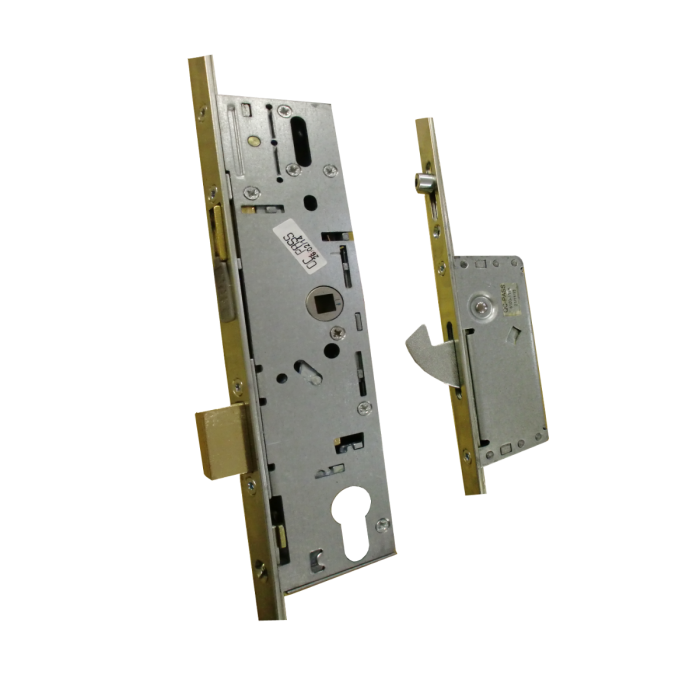

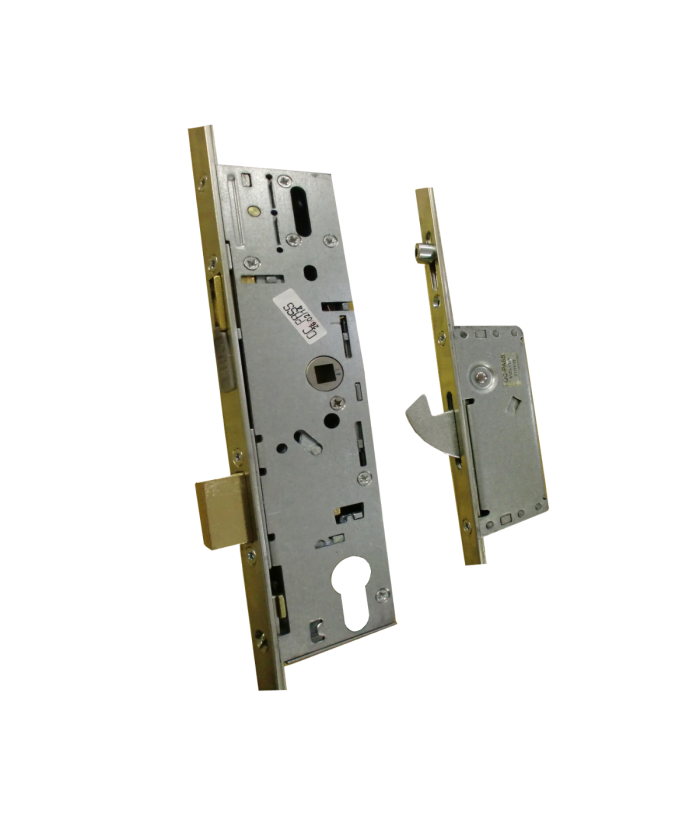

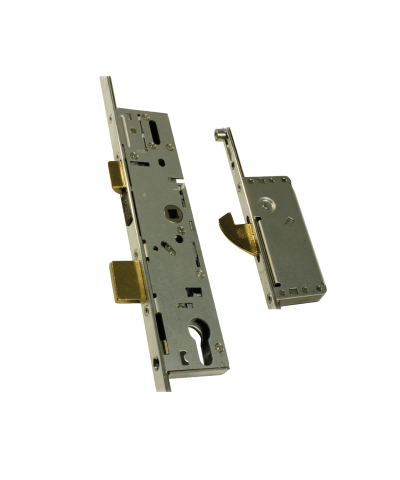

ERA Deadbolt Multipoint Lock (Short Version)

This ERA Multipoint Lock has two large hooks, and is also shorter than normal. Suitable for a uPVC Door. Sprung mechanism - accepts unsprung handles.

Can be used as Lever/Lever operation (Solid Spindle) or Lever/Pad operation (Split Spindle).

Designed to meet the requirements of PAS 23 and PAS 24, and is Licensed by Secured by Design.

Technical Information: Centre of spindle to centre of top roller: 695mm. Centre of spindle to centre of top hook: 605mm. Centre of spindle to centre of bottom hook: 615mm. Centre of spindle to centre of bottom roller: 700mm.

Available with: 35mm Backset (121554)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
