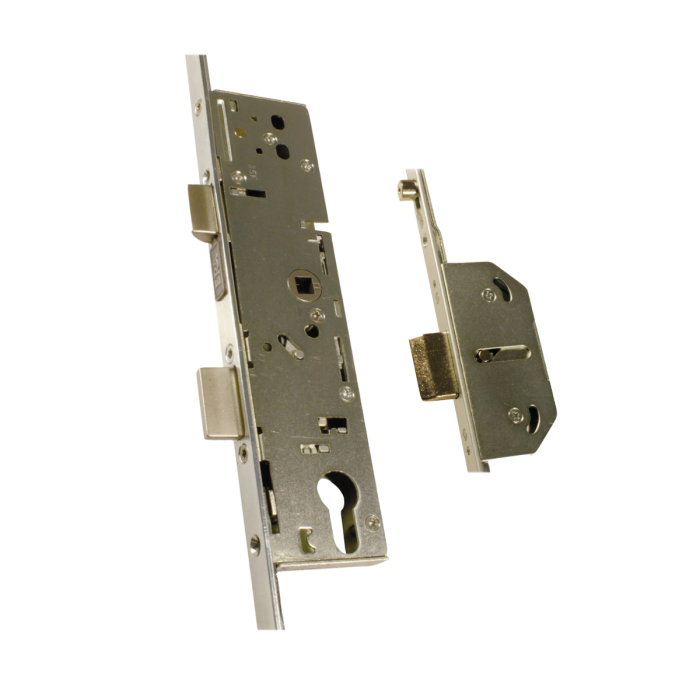

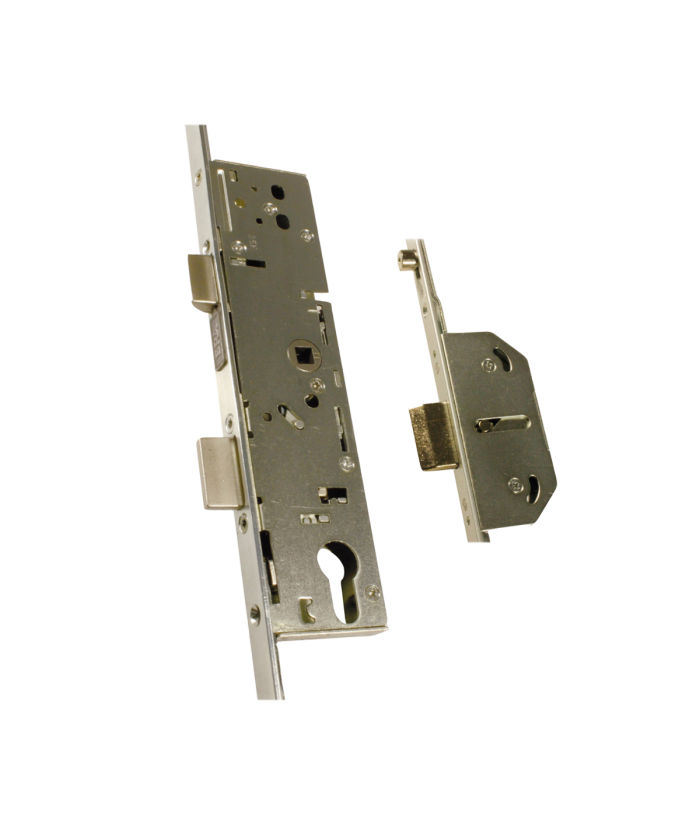

Era 3 Deadbolts 1 Latch Multipoint Lock

Suitable for uPVC and Composite doors.

Available as 35mm and 45mm Backsets.

Sprung lock - handles can be unsprung. Can be used as a lever/lever operation (one solid spindle) or lever/pad operation (split spindle).

Technical Information: Centre spindle to centre of top deadbolt: 685mm Centre spindle to centre of bottom deadbolt: 705mm

Available with: 35mm Backset (107305) 45mm Backset (101097)

L/L: Lever Operated.

To Lock - Lift handle up to engage locking points. One Full turn of the key & the door is now locked.

To Open From Inside - Turn key and push down on the handle.

To Open From Outside - Turn the key, push down on the handle and then turn key to release the door latch.
